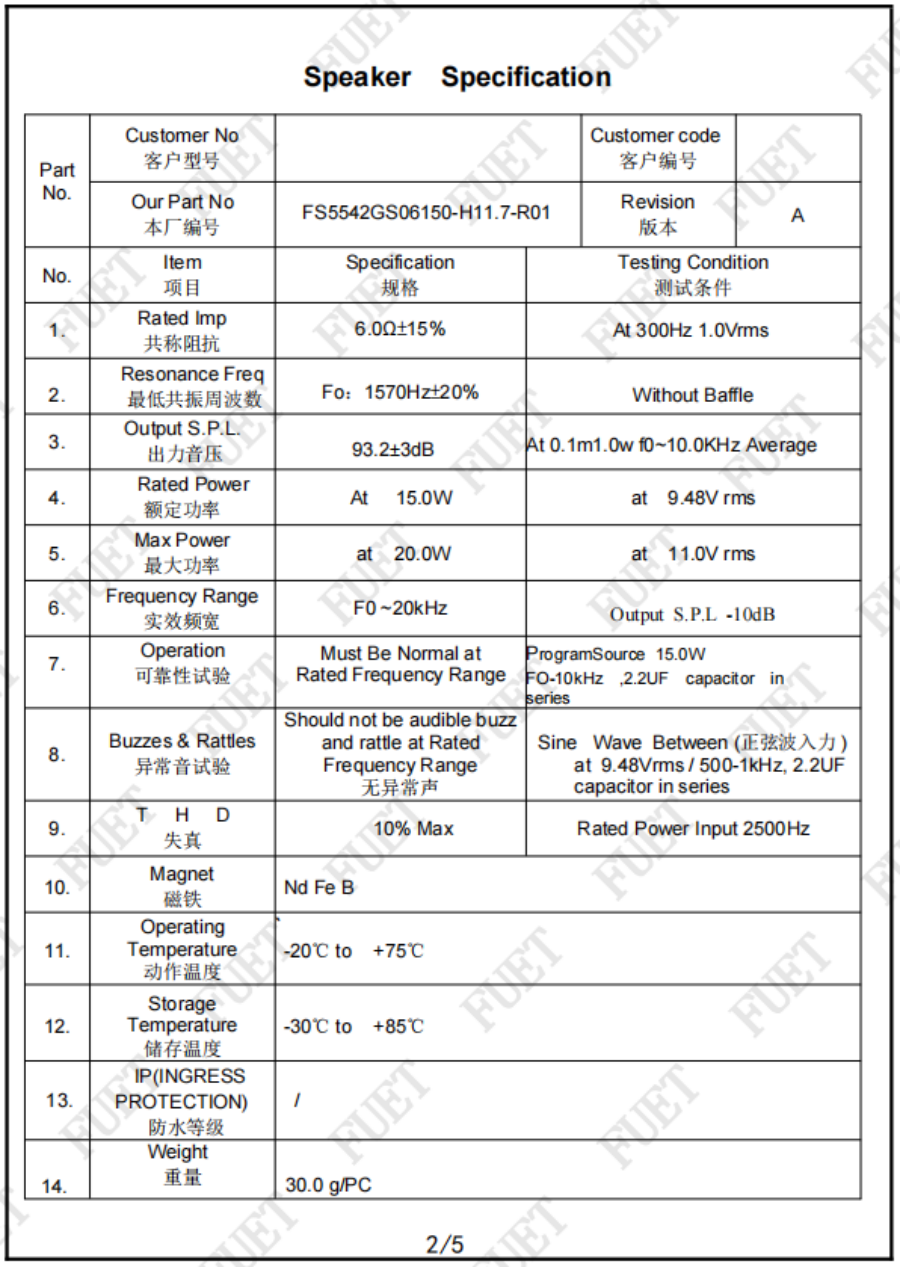

| Item | Specification | Test Condition |
| Dimensions | 55MM*42MM*H11.7MM | |
| Impedance | 6.0Ω±15% | At 300Hz 1.0Vrms |
| Minimum Resonant Frequency | 1570Hz±20% | Without Baffle |
| Output Sound Pressure | 93.2±3dB | At 0.1m1.0w f0~10.0KHz Average |
| Rated Power | 15.0W | at 9.48V rms |
| Maximum Power | 20.0W | at 11.0V rms |
| Effective Bandwidth | F0 ~20kHz | |
| Operating Temperature | -20℃ to +75℃ | |
| Storage Temperature | -30℃ to +85℃ |
